Senior Paper Packaging Machinery Mfg Co.

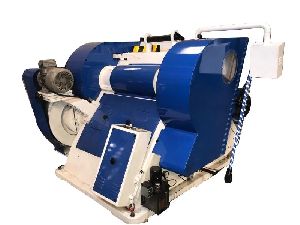

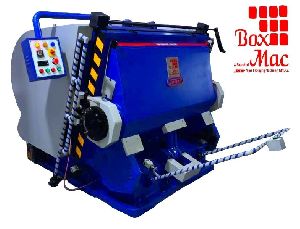

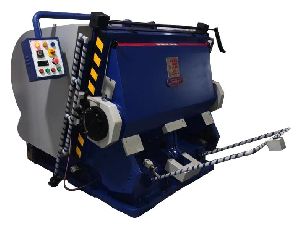

Die Punching Machine

Die Punching Machine

MOQ : 1 Set(s)

Business Type Manufacturer, Exporter, Supplier, Retailer
Brand Name Boxmac Senior
Voltage 380-440
Condition New
Click to view more

Preferred Buyer From

Location Anywhere in India

Product Details

Power
5 H.P. - 15 H.P.
Driven Type
Semi Automatic
Warranty
One Year Agianst Any Manufacturing Defect
After-Sales Service Provided
Yes
Computerized
No
Place of Origin
Amritsar, Punjab, India
Application
Carton Box, Gift Box, Sweet Box, Cake Box
Product Code
BOXMAC DIE CUTTER
Port
Any Indian Port
Payment Terms
L/C, T/T
Delivery Time
30-45 days
Packaging Details
Wrapped in BOPP Film and Packed in Export worthy Wooden boxes

We bring forth our top class Platen Die Punching Machine that is equipped with Electro-Magnetic Clutch and Brake for simple operations. Fabricated using the best quality raw materials, this Platen Die Punching Machine can perform full cuts and half cuts for stickers. The perfect sticker cutting is ideal thus, the die blade should cut through the face paper & the adhesive should come to stop just before the release of paper. We make it cent percent possible by introducing these features in our Platen Die Punching Machine. In addition to this, the Platen Die Punching Machine that we proffer complies with the set industrial standards. Our valued clients can avail the Platen Die Punching Machine manufactured by us in various sizes as per their needs, at pocket friendly prices.



Platen Die Punching Machine Is Appreciated For :

  • Robust construction
  • User friendliness
  • Precise designing
  • Reliable performance



Platen Die Punching Machine Is Ideal For :

  • Glued Boxes
  • Corrugation Boxes
  • Advertising Cut out
  • Panels Decorations
  • Jigsaw Puzzles
  • Labels
Read More...

Yes! I am interested


Technical Specifications :

Size Platen Size Impression / Hour Motor H.P Weight App.
20" x 26" 23" X 29" 2000 3 H.P 2.7 MT
22" x 32" 25" x 35" 2000 3 H.P 3.0 MT
25" x 37" 28" x 40" 1800 5 H.P 4.0 MT
32" x 42" 36" x 46" 1500 7.5 H.P 5.5 MT
36" x 50" 40" x 54" 1200 7.5 H.P 6.5 MT
39" x 52" 43" x 56" 950 10 H.P 8.0 MT
42" x 62" 46" x 66" 700 10 H.P 10.5 MT
52" x 72" 56" x 76" 650 15 H.P 13 MT

To enquire about the desired product(s), just check the box and then click “Inquiry Now” button which is provided below.
